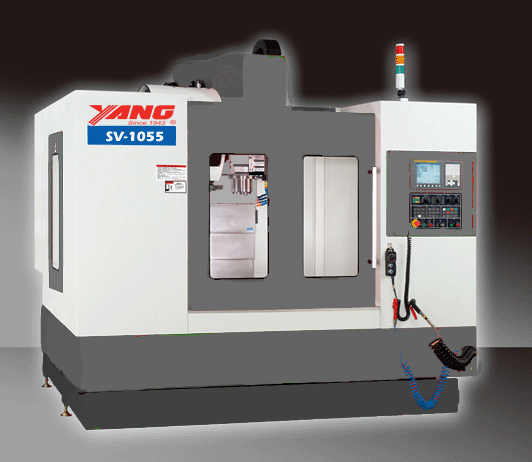

Linear Way - SV-1055

Specification of New Yang SV1055

Features

1.      The structure parts are manufactured from Meehanite cast iron for maximum stability. All structural parts are tempered, stress relieved and combined with durable rib reinforcement to upgrade the machine rigidity and stability. This also assured lifetime accuracy of the machine.

2.      The major structures of the machine are analyzed and designed by the advanced Finite Element Analysis (FEM), featuring optional rigidity of structure, high speed machining resistance and low gravity center.

3.      The box way surfaces are hardened and precision ground. Slide-way surfaces are coated with wear-resistant media are low friction, coefficient, and precision scraped to assure accurate and smooth movement.

4.      The column is a Y shape construction for outstanding rigidity and stability.

5.      Precision linear-ways on 3 axes with extra smooth movement make the machine excellent for high speed and high precision machining.

6.      A laser unit is applied for inspection and calibrating the positioning accuracy. Inspection n made according to German VDI3441 standards. In addition, a ball bar tester is also applied for inspection static, dynamic circularity accuracy, servo and geometric error.

SPINDLE

Motor
Fanuc AC Spindle Motor
Maximum Horse Power
15 HP
Maximum Speed
8,000 RPM (Std.)/10,000/12,000/15,000RPM(Opt.)
TRAVEL

X Axis
41.3" (1050mm)
Y Axis
21.6" (550mm)
Z Axis
21.6" (550mm)
TABLE

Table Size
47.2" x 21.65" (1200mmx550mm)
Load Capacity
1,320 lb. (600kg)
Number of T-Slot x Size x Pitch
4 x 0.71" (18mm) x 4.9" (125mm)
FEED RATE

Rapid Feed Rate
X,Y: 1417 ipm (36m/min), Z: 1181 ipm (30m/min)
Cutting Feed Rate
0.04 - 394 ipm (1~10mm/min)
ATC

Tool Type
CAT-40 (Std.)/BT-40/CAT50/BT50 (optional)
Maximum Tool Weight
15.4 lb. (7kg) /each
Maximum Tool Length
10" (250mm)
Tool Magazine Capacity
20 (Carouse) /24 (Arm)
ACCURACY

Table Positioning
±0.0002"/12” (0.005mm)
Repeatability
±0.00015" (0.0038mm)
GENERAL

Power Requirement
220V, 3 Phase, 75Amps
Power Consumption
25 kVA
Pneumatic Pressure
6 kgs/cm^2 (minimum)
Machine Weight
13,200 lb. (6,000kg)

Standard Accessories:                        Optional Accessories:

Fanuc 0i-MD                                       Spindle oil cooler
Fanuc 8.4” color LCD                          Chain type chip conveyor
Arm type tool changer CAT 40            ZF gearbox
Heat Exchange                                   CAT50 arm tool changer
Bed shower                                        Spindle CAT50
Screw chip conveyor                           4th axis interface
Full splashguard                                 4th axis rotary table/indexer
Working light                                      Spindle RPM 10,000/12,000/15,000
Tri-colors indicator                              Coolant through spindle
RS232 interface                                  Renishaw TS27R tool probe
Automatic lubrication                          Renishaw MP12 work piece measurement
