MH-800 - MH 800 Horizontal Machining Center

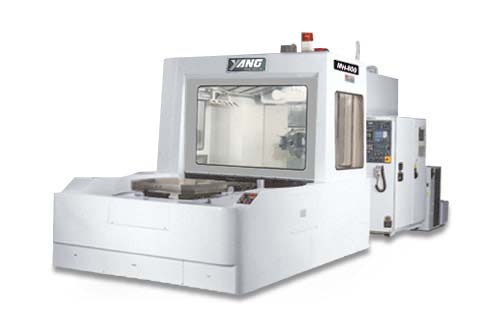

MH 800 Horizontal Machining Center

Extended spindle nose minimizes interference between headstock and workpiece while allowing a wide range of machining applications.
Moving column and optimum structural rigidity result in superior accuracy and reliability.
X, Y, and Z axes contain highly accurate, rugged linear guideways to assure rapid axis traverse while maintaining precision and accuracy.
Single piece cast base and saddle promote durability and accuracy.
Single piece cast base and saddle promote durability, accuracy, reduce backlash and guarantee accurate positioning and feeding.
High pressure coolant system facilitates deep drilling and milling applications.
Optional 4th axis available.
Large capacity tool magazine accompanied with rapid tool change and random access selection, save time and offer higher productivity.
Fully enclosed splash guard, double-sided slant linear guide covers and large volume coolant enable double screw chips augars to remove chips.
Cooling system to extend tool life; telescopic covers and waterfall coolant designed to keep chips from remaining on the table or the augers.
Splash guard device includes fully enclosed splash guard, chain type, screw type chip conveyors and chip cart.

Specifications

Unit: mm (inch)

ITEM		MH-800
Pallet	Dimensions	800 × 800 (31.5 x 31.5)
	Bolt hole	M16 × 2
	Max. loading capacity	1200 kg (Uniform distribution) (26400 lbs)
	B minimum indexing (degree)	STD:1°; OPT: 0.001°
	Index repeatability	± 4”
	Pallet capacity	2
Travel Range	Max. travel range of X/Y/Z-axis	1000 / 800 / 750 (39.4 / 31.5 / 29.5)
	Distance from spindle nose to table center	200-950 (7.9-37.4)
	Distance from spindle center to table surface	50-850 (2.0-33.5)
Spindle	Spindle taper	ISO No. 50
	Spindle nose outer diameter	Ø 100 (Ø3.9)
	Spindle speed	45-4500 rpm (3-step gear)
Feedrate	Cutting feedrate of X/Y/Z-axis	1 -5000 mm /min (0.04-197 ipm)
	Rapid traverse speed of X/Y/Z-axis	20 m /min (787 ipm)
	Minimum setting unit of X/Y/Z-axis	0.001
	Feedback element	Optical scale
Tool	Tool capacity	STD: 60 pcs; OPT: 80 pcs
	Tool selection	Shortest path
	Max. adjacent tool diameter × length	Ø 140 × 450 Max. tool diameter Ø 230
	Max. tool weight	20 kg ( 44 lbs )
	Tool shank type	BT50. CAT50.
Drive Motor	Spindle motor	15 / 18.5 kW (20 / 24.8 HP)
	Servo motor of X/Y/Z/B-axis	4 / 4 / 7 / 1.6 kW (5.4 / 5.4 / 9.4 / 2.1 HP)
	Spindle recirculating lubrication motor	370 W
	Centralized lubrication system	12 W
	Hydraulic motor	5.5 kW (7.4 HP)
	Coolant motor (for tools/chips)	0.75 / 1.5 kW
	Chip conveyor motor	0.1 kW × 2 (1/8HP × 2)
	ATC motor	2.2 kW
	Chain type chip conveyor + Chip bucket	Hydraulic
Accuracy	Positioning	± 0.004
Accuracy	Repeatability	± 0.003
Miscellaneous	T-T (sec)	8
	P-P (sec) pallet to pallet	18
	Outline dimensions (W × H × D) w/80-tool	6788 × 2950 × 2950 (267 x 116 x 116)
	Packing size (W × H × D) w/80-tool	7820 × 3360 × 3550 (308 x 132 x 140)
	Net weight (approx.) w/80-tool	19410 / 3250 kg (42702 / 7150 lbs)
	Gross weight (approx.) w/80-tool	23920 / 3550 kg (52624 / 7810 lbs)

*Specifications are subject to change without prior notice.

Standard Accessories

Fanuc 0i-MC controller

Spindle Speed: 4500 rpm

Spindle Motor: 15/18.5 kW

Spindle Lubrication Coolant System

Automatic Lubrication System

Coolant System

X,Y,Z-axis Optical Scales

Leveling Bolts and Pads

Tool Kit

60-Tool Magazine Capacity with 60 pcs Retention Knobs

Chip Auger

Indexing Angle Table 1° Degree

Chip Conveyor + Chip Bucket

Fully Enclosed Splash Guard

2 Pallet Shuttle

Work Lamp

Operator's Manual

Maintenance Manual

Programming Manual

Parts List

Options

80-Tool Magazine Capacity with 80 pcs Retention Knobs
Fanuc 18I-MB
Oil Hole Tool Holder
Rigid tapping

Rotary Table 0.001 Degree
Automatic Tool Length Measurement
Automatic Workpiece Measurement
