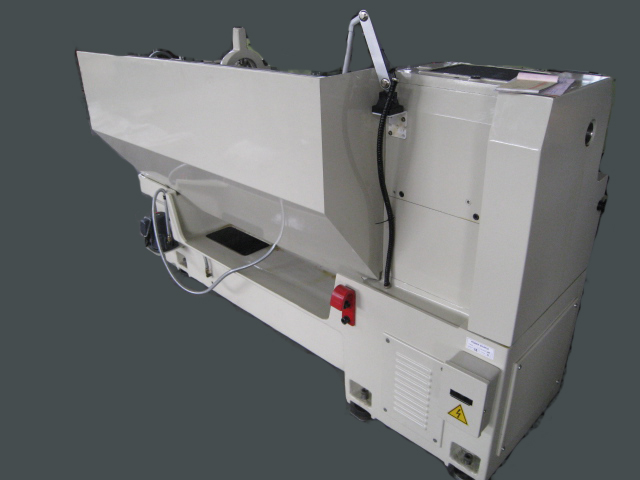

| CL-16 Series - CL-1628G/CL-1640G |
CL16 Series - Inch Model Dimension:

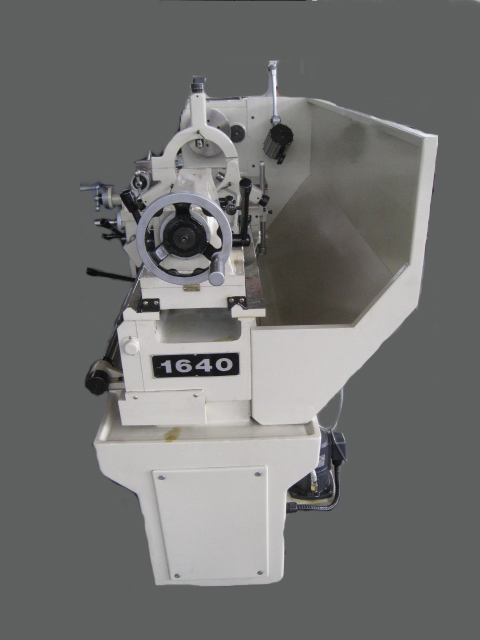

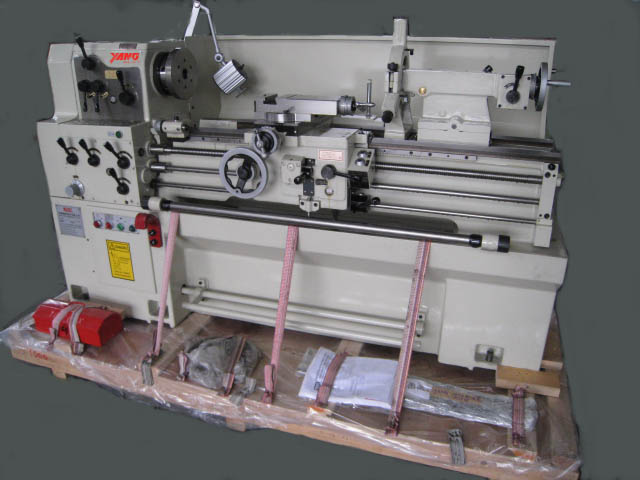

| See A & B size from above machine picture |
|
Metric Model Name
(Inch Model Name)
|
A size
|
B - size |
|
CL 4055
(CL1622/CL1622G)
|
550mm
21.65 inch
|
1785mm
70.27 inch
|
|
CL4070/ 4070G
(CL1628/CL1628G)
|
700mm
27.56"
|
1955mm
76.97"
|
|
CL40100 / 40100G
(CL1640/CL1640G)
|
1000mm
39.37"
|
2270mm
89.37"
|
Product Specifications:
|
ITEM
|
SPECIFICATIONS / MODEL
|
CL4055
(CL1622)
|
CL4070
CL4070G
(CL1628/ CL1628G)
|
CL40100
CL40100G
(CL1640/ CL1640G)
|
|
SWING
AND
DISTANCE
|
Swing over bed
|
φ400mm = φ15.75"
|
|
Swing over cross slide
|
φ245mm = φ9.65"
|
|
TYPE
|
Swing over gap
|
φ585mm = φ23.03"
|
|
Width of gap from face plate
|
A1-5:203;D1-5:188
|
|
Distance between centers
|
550mm = 21.65"
|
700mm = 27.56"
|
1000mm = 39.37"
|
|
SPINDLE
|
Spindle bore
|
φ45mm = φ1.77"
|
|
Spindle nose
|
ASA A1-5(ASA D1-5 option)
|
|
Taper of spindle bore
|
1/30 TAPER
|
|
Taper of center
|
M.T. NO.3
|
|
Numbers of spindle speed
|
6
|
|
Range of spindle speeds (R.P.M.)
|
100,195,330,675,1200,2000, r.p.m
|
|
Spindle motor
|
3.75kw(5HP)4P
|
|
THREADS
CUTTING
RANGE
|
Universal
gear box
|
Metric leadscrew
|
Metric teeth(MM)
|
0.5~7
|
|
Inch teeth
(T.P.I)
|
4~56
|
|
Inch leadscrew
|
Metric teeth(MM)
|
0.5~7
|
|
Inch teeth(T.P.I)
|
4~56
|
|
Metric/inch
gear box
|
Metric/inch leadscrew
|
Metric teeth(MM)
|
0.4~7
|
|
Inch teeth(T.P.I)
|
2~56
|
|
D.P.threads(D.P.)
|
4~56
|
|
Module threads(M.P.)
|
0.4~3.5
|
|
FEED
RANGE
|
Universal
gear box
|
Longitudinal range
|
Metric teeth(MM)
|
0.037~0.515
|
|
Inch teeth(INCH)
|
0.0015~0.0203
|
|
Inch leadscrew in bed(MM)
|
0.037~0.515
|
|
Cross range
|
Metric teeth(MM)
|
0.041~0.580
|
|
Inch teeth(INCH)
|
0.0016~0.228
|
|
Inch leadscrew in bed(MM)
|
0.041~0.580
|
|
Number of feed change
|
32
|
|
Metric/inch
gear box
|
Metric/inch leadscrew
|
Longitudinal MM(INCH)
|
Metric leadscrew:0.083~0.584
(Inch leadscrew:0.0031~0.0217)
|
|
Cross MM(INCH)
|
Metric leadscrew:0.094~0.658
(Inch leadscrew:0.0028~0.0194)
|
|
Inch leadscrew in bed
|
Longitudinal MM
|
0.079~0.552
|
|
Cross MM
|
0.089~0.622
|
|
Number of feed change
|
64
|
|
LEADSCREW
|
φ28mm = φ1.10" (4T.P.I or 6mm)
|
|
TOOL SLIDE
|
Compound rest
|
125mm = 4.92"
|
|
Cross slide travel
|
215mm = 8.47"
|
|
Carriage travel (mm)
|
510 = 20.08"
|
675 = 26.58"
|
980 = 38.58"
|
|
TAILSTOCK
|
Diameter of quill
|
φ52mm = 2.05"
|
|
Quill travel
|
140 = 5.51"
|
|
Taper of center
|
M.T. No.4
|
|
BED
|
Length (mm)
|
1350 = 53.15"
|
1550 = 61.02"
|
1870 = 73.62"
|
|
Width
|
300mm = 11.81"
|
|
GENERAL
|
Floor space(L×W) mm
|
1785x890
70.28"x35.04"
|
1955x890
76.97"x35.04"
|
2270x890
89.37"x35.04"
|
|
Packing size(L×W×H) mm
|
1760 x 920 x 1470
69.29"x 36.22" x57.87
|
1920 x 920 x 1470
75.59"x 36.22" x57.87
|
2200 x 920 x 1470
87.40"x 36.22" x57.87
|
|
Net weight(approx)kgs
|
1140kgs
2508 lbs
|
1200kgs
2640 lbs
|
1250kgs
2750 lbs
|
|
Gross weight(approx)kgs
|
1250kgs
2750 lbs
|
1300kgs
2860 lbs
|
1400kgs
3080 lbs
|
Specifications are subject to change without notice for further design improvement.
Product Accessories:
| STANDARD ACCESSORIES |
|
ITEM
|
CL400 (CL16)
|
|
Driving plate
|
200mm = 7.87" 1PC
|
|
Change gears
|
35T×2, 48T×1, 54T×1
|
|
Worm gear(metric lead screw)
|
21T 1PC
|
|
Center
|
M.T No4 1PC
|
|
Cooling equipment
|
1set
|
|
Leveling pads
|
1set
|
|
Tool kits
|
1set
|
| OPTIONAL ACCESSORIES |
|
ITEM
|
CL400 (CL16)
|
|
Steady rest
|
ψ10~ψ130mm = 0.39"~5.12"1set
|
|
Follow rest
|
ψ10~ψ90mm = 0.39"~3.54"1set
|
|
Face plate(mm)
|
280mm = 11.02"
|
|
Three-jaw scroll chuck
|
1set
|
|
Four-jaw independent chuck
|
1set
|
|
Taper attachment
|
1set
|
|
Rear tool holder
|
1set
|
|
Micro carriage stop
|
1set
|
|
Splash guard
|
1set
|
|
Multi pole motor
|
1set
|
|
Work lamp
|
1set
|
|
Center & center sleeve
|
1set
|
|
Metric(Inch) gear box
|
1set
|
|
Metric(Inch) cutting gread indicator
(Only in inch leadscrew)
|
1set
|
|
